ESP32 and LM75 temperature sensor example

by shedboy71

The LM75 temperature sensor includes a delta-sigma analog-to-digital converter, and a digital overtemperature detector. The host can query the LM75 through its I²C interface to read temperature at any time.

The open-drain overtemperature output (OS) sinks current when the programmable temperature limit is exceeded. The OS output operates in either of two modes, comparator or interrupt.

The host controls the temperature at which the alarm is asserted (TOS) and the hysteresis temperature below which the alarm condition is not valid (THYST). Also, the LM75's TOS and THYST registers can be read by the host. The address of the LM75 is set with three pins to allow multiple devices to work on the same bus.

Power-up is in comparator mode, with defaults of TOS = +80°C and THYST = +75°C. The 3.0V to 5.5V supply voltage range, low supply current, and I²C interface make the LM75 ideal for many applications in thermal management and protection.

Key Features

SO (SOP) and µMAX® (µSOP) Packages
I²C Bus Interface
Separate Open-Drain OS Output Operates as Interrupt or Comparator/Thermostat Input
Register Readback Capability
Power-Up Defaults Permit Stand-Alone Operation as a Thermostat
3.0V to 5.5V Supply Voltage
Low Operating Supply Current 250µA (typ), 1mA (max)
4µA (typ) Shutdown Mode Minimizes Power Consumption
Up to Eight LM75s Can Be Connected to a Single Bus

Parts Required

Here are the parts I used

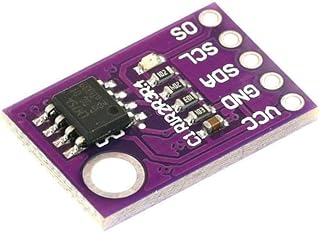

The sensor you can pick up in the $6 price range – you can connect to the sensor using a standard header the classic dupont style jumper wire.

Name Link
ESP32
LM75
Connecting cables

Layout

ESP32 and lm75

ESP32 and lm75

Code

I used this library – https://github.com/jlz3008/lm75

#define VERSION "1.1"

#include <inttypes.h>
#include <Wire.h>

#include <lm75.h>

TempI2C_LM75 termo = TempI2C_LM75(0x48,TempI2C_LM75::nine_bits);

void setup()
{
Serial.begin(9600);
Serial.println("Start");
Serial.print("Actual temp ");
Serial.print(termo.getTemp());
Serial.println(" oC");
delay(2000);
}

void loop()
{
Serial.print(termo.getTemp());
Serial.println(" oC");
delay(5000);
}
