A 4.3 inch TFT and ESP32-S3

by shedboy71

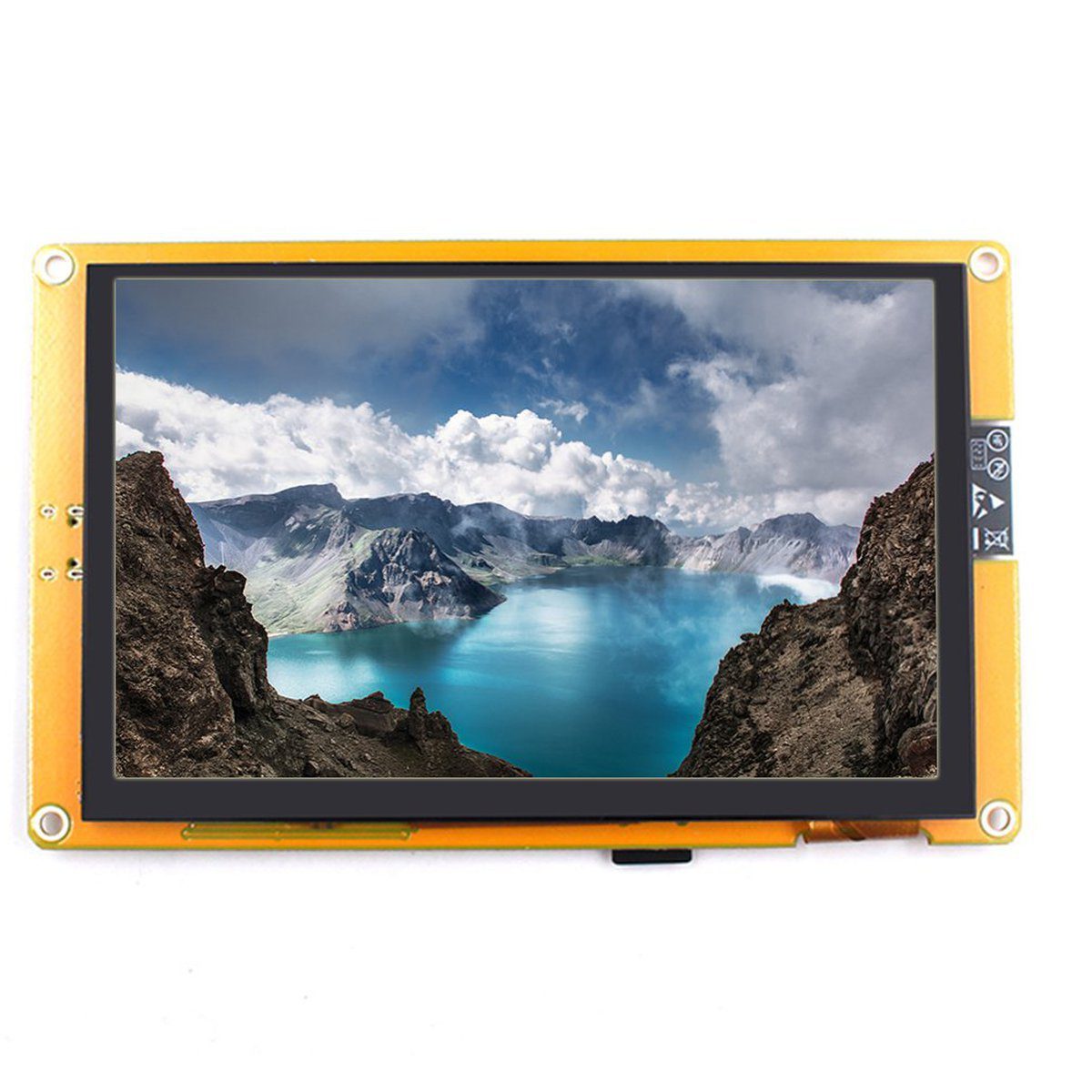

This LCD module uses an ESP32-S3-WROOM-1 module as the main controller, the main controller is a dual-core MCU, integrated WI-FI and Bluetooth functions, the frequency can reach 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM,Flash size is 16MB, The display resolution is 480*272 or 800*480, resistive touch or Capacitive touch.

The module includes an LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface ,IO port interface, this module supports development in arduino IDE, ESP IDE, Micropython and Mixly.

ESP32-S3 is a low-power MCU-based system-on-chip (SoC) that supports 2.4 GHz Wi-Fi and Bluetooth®LowEnergy (Bluetooth LE).

It consists of high-performance dual-core microprocessor (Xtensa®32-bit LX7), a lowpower coprocessor, a Wi-Fi baseband, a Bluetooth LE baseband, RF module, and peripherals.

Features

  • ESP32-S3-WROOM Controller
  • Working voltage 4.75-5.25V
  • Resolution: 800*480 IPS
  • Dimension: 4.3 inch
  • Capacitive Touch
  • Onboard SD card socket
  • Extended IO for applications' usage
  • Onboard Photosensitive resistor (for auto Backlight adjustment)
  • Onboard RGB LED

Display color RGB 65K color
Size – 4.3 inch
Type – TFT
Driver chip – ILI9485
Resolution – 480*272(Pixel)
Effective display area – 95.04* 53.86(mm)
Module size – 105.5*74(mm)
View >60°
Operating temperature is -20℃~70℃
Storage temperature is -30℃~80℃
Operating Voltage is 5V
Power consumption comes in at about 260mA
Product weight comes in at about 130g

Software setup

To ensure the running environment, the same version is recommended.

All the projects are based on ESP32-S3 development board.

1.Install the Arduino IDE V1.8.19.

2.Install the ESP32 boards supporting V2.0.5

3.Click “Tools>Board>Boards Manager” to search for and install the ESP32 library:

Summary

A nice big LCD screen at a price of $27 which can be programmed using the Arduino IDE

A couple of examples are supplied via the links, the TFT comes with an sd card fitted
