ESP32 and MAX44009 ambient light sensor example

The MAX44009 ambient light sensor features an I²C digital output that is ideal for a number of portable applications such as smartphones, notebooks, and industrial sensors. At less than 1µA operating current, it is the lowest power ambient light sensor in the industry and features an ultra-wide 22-bit dynamic range from 0.045 lux to 188,000 lux.

Low-light operation allows easy operation in dark-glass applications.

The on-chip photodiode’s spectral response is optimized to mimic the human eye’s perception of ambient light and incorporates IR and UV blocking capability. The adaptive gain block automatically selects the correct lux range to optimize the counts/lux.

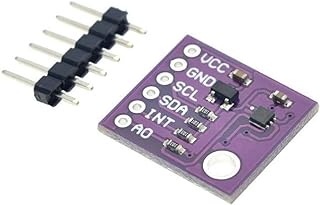

max44009 module
max44009 module

Features

Wide 0.045 Lux to 188,000 Lux Range
VCC = 1.7V to 3.6V
ICC = 0.65µA Operating Current
-40°C to +85°C Temperature Range
Device Address Options – 1001 010x and 1001 011x

Connection



Module Pin LOLIN32 Pin
 Vin 3v3
 Gnd Gnd
 SCL  22
SDA  21



Code

<pre>#include&lt;Wire.h&gt;

#define Addr 0x4A

void setup()
{

Wire.begin();
// Initialise serial communication
Serial.begin(9600);

Wire.beginTransmission(Addr);
Wire.write(0x02);
Wire.write(0x40);
Wire.endTransmission();
delay(300);
}

void loop()
{
unsigned int data[2];
Wire.beginTransmission(Addr);
Wire.write(0x03);
Wire.endTransmission();

// Request 2 bytes of data
Wire.requestFrom(Addr, 2);

// Read 2 bytes of data luminance msb, luminance lsb
if (Wire.available() == 2)
{
data[0] = Wire.read();
data[1] = Wire.read();
}

// Convert the data to lux
int exponent = (data[0] &amp; 0xF0) &gt;&gt; 4;
int mantissa = ((data[0] &amp; 0x0F) &lt;&lt; 4) | (data[1] &amp; 0x0F);
float luminance = pow(2, exponent) * mantissa * 0.045;

Serial.print("Ambient Light luminance :");
Serial.print(luminance);
Serial.println(" lux");
delay(500);
}</pre>

Output

Open the serial monitor and change the light intensity on the sensor, here is an example

Ambient Light luminance :24.48 lux
Ambient Light luminance :21.42 lux
Ambient Light luminance :21.42 lux
Ambient Light luminance :9.94 lux
Ambient Light luminance :9.94 lux
Ambient Light luminance :13.77 lux
Ambient Light luminance :22.95 lux
Ambient Light luminance :22.95 lux
Ambient Light luminance :42.84 lux
Ambient Light luminance :55.08 lux
Ambient Light luminance :55.08 lux
Ambient Light luminance :55.08 lux

This handy little table from wikipedia shows some typical lux values

Illuminance (lux) Surfaces illuminated by
0.0001 Moonless, overcast night sky (starlight)
0.002 Moonless clear night sky with airglow
0.05–0.36 Full moon on a clear night[4]
3.4 Dark limit of civil twilight under a clear sky
20–50 Public areas with dark surroundings
50 Family living room lights
80 Office building hallway/toilet lighting
100 Very dark overcast day
320–500 Office lighting
400 Sunrise or sunset on a clear day.
1000 Overcast day; typical TV studio lighting
10,000–25,000 Full daylight (not direct sun)
32,000–100,000 Direct sunlight



Link

https://datasheets.maximintegrated.com/en/ds/MAX44009.pdf
