ESP32 and Infrared receiver example

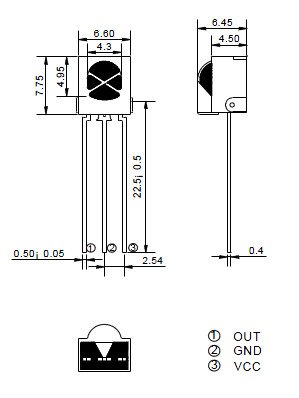

In this example we look at how to connect an IR Reciever. Generally, they require Vcc(5v), GND and there is a data out which you connect to your Arduino. Here is a typical IR showing the pinout.

I managed to get mine working just fine with the 3.3v from the ESP32 board

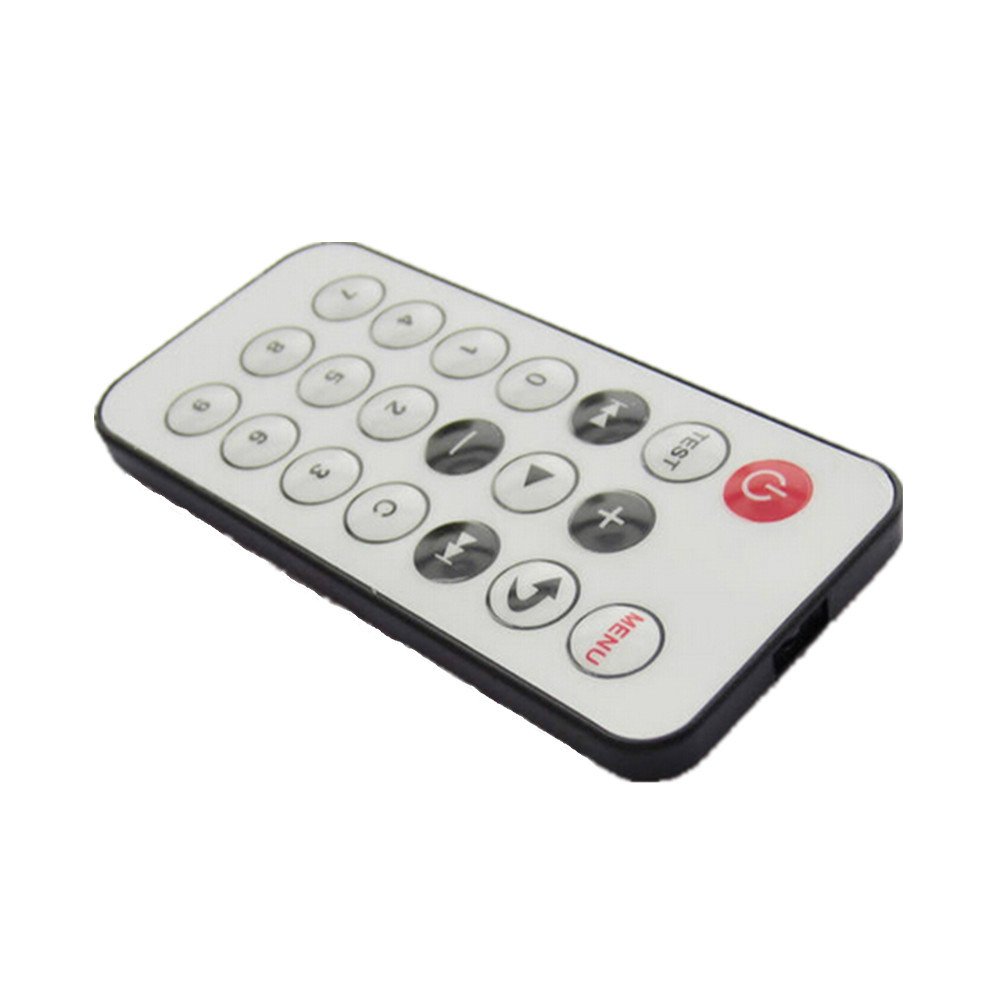

Many electronic shops online stock breakouts for these. Here is a picture of the remote control that I used for testing, there are many variants of these available

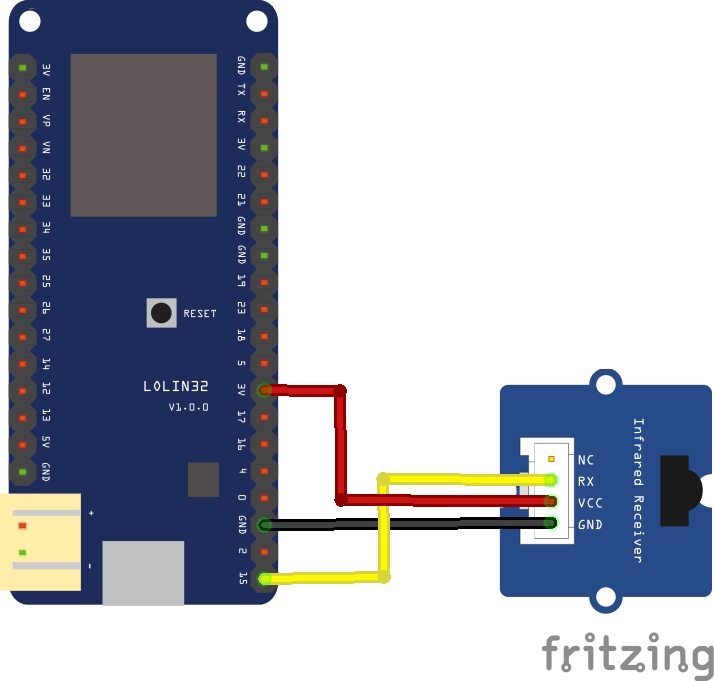

Layout



Code

You’ll need the IR Remote library, you can get this from

https://github.com/shirriff/Arduino-IRremote

Download and import or copy into your Arduino -> Library folder. As usual this library will be doing most of the work making it easier for ourselves.

#include <IRremote.h>

int RECV_PIN = 15;

IRrecv irrecv(RECV_PIN);

decode_results results;

void setup()
{
Serial.begin(9600);
irrecv.enableIRIn(); // Start the receiver
}

void loop()
{
if (irrecv.decode(&results))
{
Serial.println(results.value, HEX);
irrecv.resume();
}
}

Testing

I opened the serial monitor and pressed various keys on my remote here is what was displayed

FFA25D
FFFFFFFF
FFE21D
FF22DD
FFFFFFFF
FF02FD
FFFFFFFF
FFC23D
F076C13B
FFFFFFFF
FFA857
FF906F
FFFFFFFF
FF6897
FFFFFFFF
FFFFFFFF
FF9867
FFFFFFFF
FFB04F
FFFFFFFF
FF30CF

As you can see with a bit of programming we can take these values and put them to use.
