Use a ESP32 to display DHT11 readings on a web page

by shedboy71



In a previous example we displayed DHT11 readings via the serial monitor and we also have had an ESP32 Web server example in the past, you can quite easily combine these two examples together to display readings from a DHT11 sensor on a web page.

Also this demonstrates how its quite easy to take readings from a sensor and display them via a web page

The schematics are the same as before and are here for reference

Parts Required

Here are the parts I used



Name Link
ESP32
DHT11
Connecting cables

Schematic



lolin32 and dht11

lolin32 and dht11

Code

You need to add the DHT11 library from adafruit to the Arduino IDE – https://github.com/adafruit/DHT-sensor-library

You will need to put your username and password for your wireless network by updating these lines

const char* ssid = “username”;
const char* password = “password”;

#include <WiFi.h>
#include "DHT.h"

// Uncomment one of the lines below for whatever DHT sensor type you're using!
#define DHTTYPE DHT11 // DHT 11

// Replace with your network credentials
const char* ssid = "username";
const char* password = "password";

WiFiServer server(80);

// DHT Sensor
const int DHTPin = A13;
// Initialize DHT sensor.
DHT dht(DHTPin, DHTTYPE);

// Temporary variables
static char celsiusTemp[7];
static char fahrenheitTemp[7];
static char humidityTemp[7];

// Client variables
char linebuf[80];
int charcount=0;

void setup() {
// initialize the DHT sensor
dht.begin();

//Initialize serial and wait for port to open:
Serial.begin(115200);
while(!Serial) {
; // wait for serial port to connect. Needed for native USB port only
}

// We start by connecting to a WiFi network
Serial.println();
Serial.println();
Serial.print("Connecting to ");
Serial.println(ssid);

WiFi.begin(ssid, password);

// attempt to connect to Wifi network:
while(WiFi.status() != WL_CONNECTED) {
// Connect to WPA/WPA2 network. Change this line if using open or WEP network:
delay(500);
Serial.print(".");
}
Serial.println("");
Serial.println("WiFi connected");
Serial.println("IP address: ");
Serial.println(WiFi.localIP());

server.begin();
}

void loop()
{
// listen for incoming clients
WiFiClient client = server.available();
if (client)
{
Serial.println("New client");
memset(linebuf,0,sizeof(linebuf));
charcount=0;
// an http request ends with a blank line
boolean currentLineIsBlank = true;
while (client.connected())
{
if (client.available())
{
char c = client.read();
Serial.write(c);
//read char by char HTTP request
linebuf[charcount]=c;
if (charcount<sizeof(linebuf)-1) charcount++;
// if you've gotten to the end of the line (received a newline
// character) and the line is blank, the http request has ended,
// so you can send a reply
if (c == '\n' && currentLineIsBlank)
{
// Sensor readings may also be up to 2 seconds 'old' (its a very slow sensor)
float h = dht.readHumidity();
// Read temperature as Celsius (the default)
float t = dht.readTemperature();
// Read temperature as Fahrenheit (isFahrenheit = true)
float f = dht.readTemperature(true);
// Check if any reads failed and exit early (to try again).
if (isnan(h) || isnan(t) || isnan(f))
{
Serial.println("Failed to read from DHT sensor!");
}
else{
// Computes temperature values in Celsius + Fahrenheit and Humidity
float hic = dht.computeHeatIndex(t, h, false);
dtostrf(hic, 6, 2, celsiusTemp);
float hif = dht.computeHeatIndex(f, h);
dtostrf(hif, 6, 2, fahrenheitTemp);
dtostrf(h, 6, 2, humidityTemp);
}

// send a standard http response header
client.println("HTTP/1.1 200 OK");
client.println("Content-Type: text/html");
client.println("Connection: close"); // the connection will be closed after completion of the response
client.println();
client.println("<!DOCTYPE HTML><html><head><meta name=\"viewport\" content=\"width=device-width, initial-scale=1\">");
client.println("<meta http-equiv=\"refresh\" content=\"2\"></head>");
client.println("<body><h1><p>ESP32 DHT11 example</h1><p>");

client.println(celsiusTemp);
client.println("*C</p><p>");
client.println(fahrenheitTemp);
client.println("*F</p><p>");
client.println(humidityTemp);
client.println("%</p>");
client.println("</body></html>");
break;
}
if (c == '\n')
{
// you're starting a new line
currentLineIsBlank = true;
memset(linebuf,0,sizeof(linebuf));
charcount=0;
}
else if (c != '\r')
{
// you've gotten a character on the current line
currentLineIsBlank = false;
}
}
}
// give the web browser time to receive the data
delay(1);
// close the connection:
client.stop();
Serial.println("client disconnected");
}
}



Output

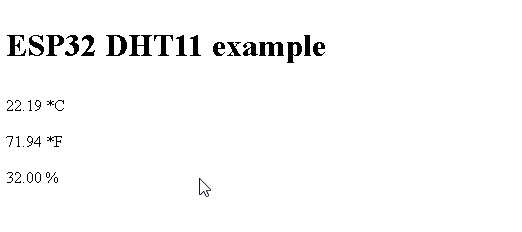

Open the serial monitor and you should get the assigned IP address, once you get this paste this into your browser and all going well you should see something like this, the code is designed to refresh the page every 2 seconds

Link

DHT11 Temperature and Relative Humidity Sensor Module With Cable for Arduino
