ESP32 and TEMT6000 ambient light sensor

by shedboy71

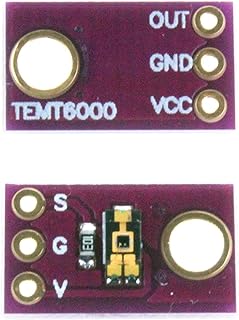

TEMT6000 ambient light sensor is a silicon NPN epitaxial planar phototransistor in a miniature transparent 1206 package for surface mounting.

It is sensitive to visible light much like the human eye and has peak sensitivity at 570 nm.

Features
• Adapted to human eye responsivity
• Wide angle of half sensitivity ϕ = ± 60°

Applications

Ambient light sensor for display backlight dimming in:

Mobile phones
Notebook computers
PDA’s
Cameras
Dashboards



Parts Required

Here are the parts I used

you can connect to the sensor using a standard header the classic dupont style jumper wire.

Name Link
ESP32
TEMT6000
Connecting cables

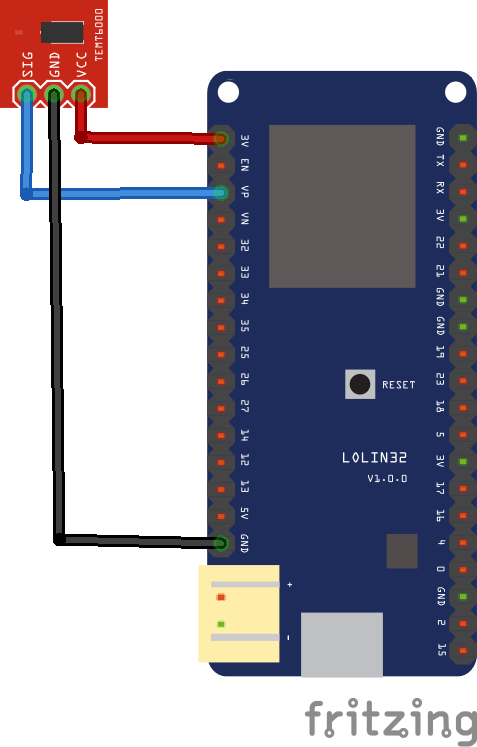

Connection and Layout

TEMT6000 Pin ESP32 Pin
SIG A0
GND GND
VCC 3v3
esp32 and temt6000

esp32 and temt6000



Code

No libraries needed

#define LIGHTSENSORPIN A1 //Ambient light sensor reading

void setup()
{
pinMode(LIGHTSENSORPIN, INPUT);
Serial.begin(9600);
}

void loop()
{
float reading = analogRead(LIGHTSENSORPIN); //Read light level
float square_ratio = reading / 1023.0; //Get percent of maximum value (1023)
square_ratio = pow(square_ratio, 2.0);
Serial.println(reading);
delay(1000);
}



Output

Open the serial monitor and you should see something like this

41.00
42.00
4.00
1.00
21.00
38.00
41.00
41.00
40.00



Links

https://www.vishay.com/docs/81579/temt6000.pdf
